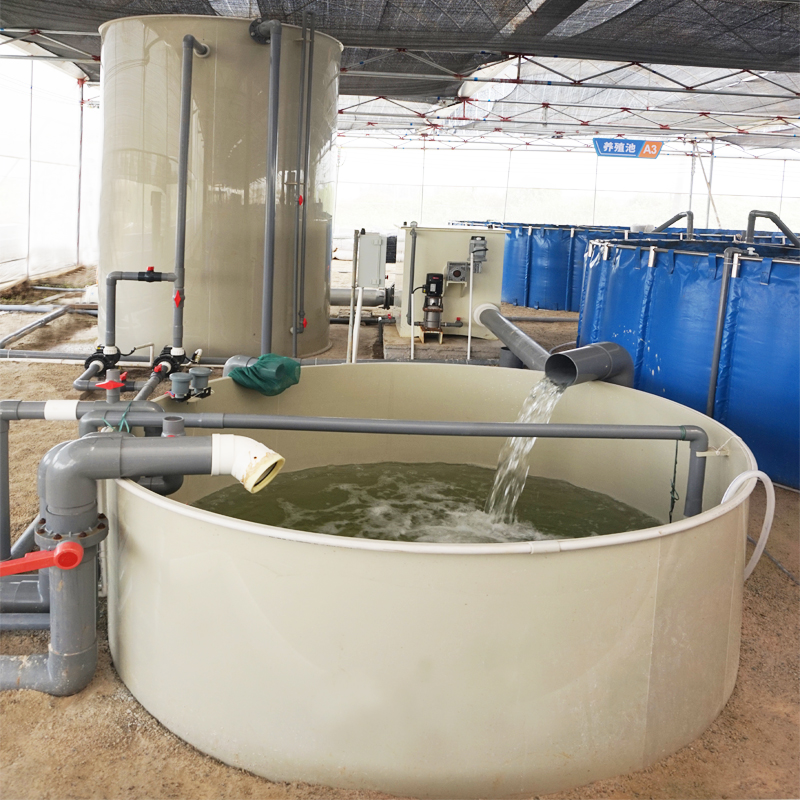

Indoor Intensive RAS Aquaculture Systems for Prawn Farming System

Indoor Intensive RAS Aquaculture Systems for Prawn Farming System

  • Overview

  • Parameter

  • Inquiry

  • Related Products

The eWater Indoor Intensive RAS Aquaculture System is perfect for prawn farming system. It is an item that is revolutionary provides a sustainable and efficient way to develop prawns in a host that is interior. This system consists of high-quality elements that can come together in order to make a environment that is perfect prawns to flourish.

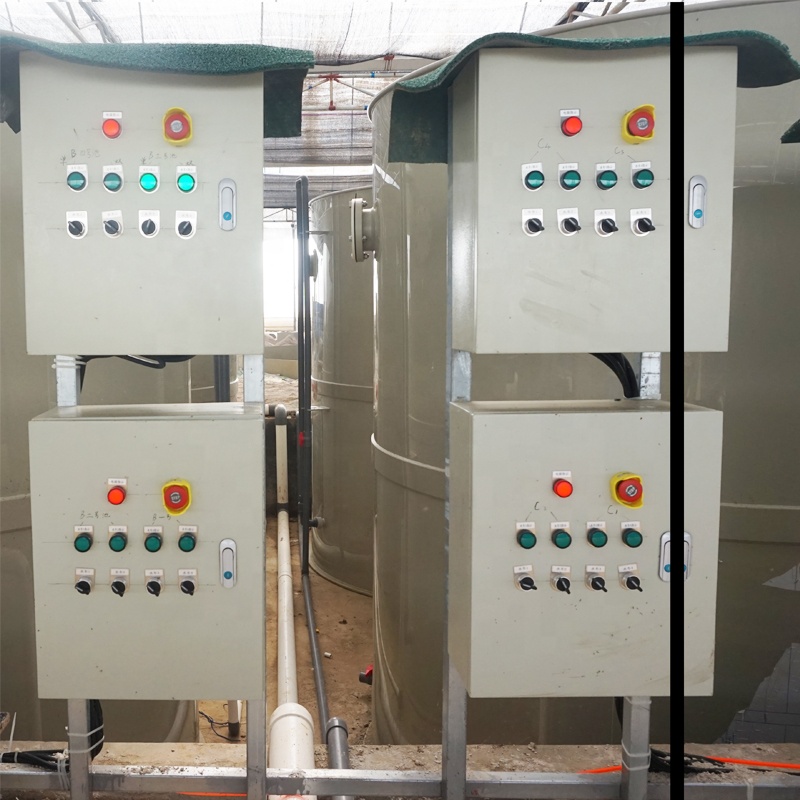

The eWater Indoor Intensive RAS Aquaculture System is simple to operate and setup. It comes down with clear installation instructions and certainly will be quickly assembled without specialist help. These devices are user-friendly, as well as the settings are really user friendly, rendering it simple for you to definitely operate. The device is totally automated, providing a control that is precise this is certainly crucial to the healthy growth of prawns.

The eWater Indoor Intensive RAS Aquaculture System is energy-efficient, making it a variety that is budget-friendly prawn farmers. This technique recirculates water through a filter this is certainly biological removes impurities and pollutants, decreasing the necessity for regular water modifications. The machine features a energy that is low rate, which makes it an energy-efficient item which will surely help you save well on power expenses.

One of the most significant great things about the eWater Indoor Intensive RAS Aquaculture System is its power to create an environment that is optimal prawn agriculture. A heat is had by the system control mechanism that permits one to keep up using the water this is certainly optimum for prawn development. This will make it much easier to achieve yields which can be optimal even yet in regions with extreme weather conditions.

The machine even offers a mechanism this is certainly feeding dispenses food at precise intervals, making certain your prawns are adequately fed. The machine that is feeding automated, and you may easily adjust the feeding intervals and portions to allow for the prawn's growth stage.


The eWater Indoor Intensive RAS Aquaculture System is made to last, with top-quality materials that may withstand the marine environment that is harsh. The machine calls for maintenance that is minimal features a long lifespan, rendering it an intelligent investment for prawn farmers.

Advantages of Recirculating Aquaculture System (RAS)
1. It can effectively solve the problem of pollution and discharge of traditional aquaculture tail water, save energy and reduce emission, and protect the environment.
2. Not subject to the influence and constraints of the natural environment, such as climate and water quality changes, the aquaculture process is easy to control, and can realise year-round multi-cycle aquaculture.
3. It can reduce the dependence on high-quality aquaculture water source and realise cross-regional aquaculture, northern culture of southern fish and desalination of marine fish.
4. It can effectively isolate diseases and control the invasion of disease sources, reduce the rate of nursery bacteria and
morbidity, and improve quality and efficiency.
5. Controllable aquaculture environment and product growth rate, and predictable aquaculture harvest.
6. Water and land saving, flexible site selection and high utilisation rate of the farm site
7. High-density breeding, occupying less land, greatly increasing the production per unit of breeding area, scale efficiency and economic benefits.
RAS Description
Model
Water flowrate
Water volume
Power consumption
Space required
Diameter(m)
Fish production
RAS-200
200m³
100~300m³
17~35 kw
200~400m³
5
~35000 kg/cycle
RAS-300
300m³
150~450m³
25~50 kw
250~700m³
6
~45000 kg/cycle
RAS-500
500m³
250~ 750m³
40~80 kw
400~1100m³
7
~75000 kg/cycle
RAS-800
800m³
400~1200m³
60~120 kw
700~2000m³
8
~120000 kg/cycle

Raw water treatment system (1 set)

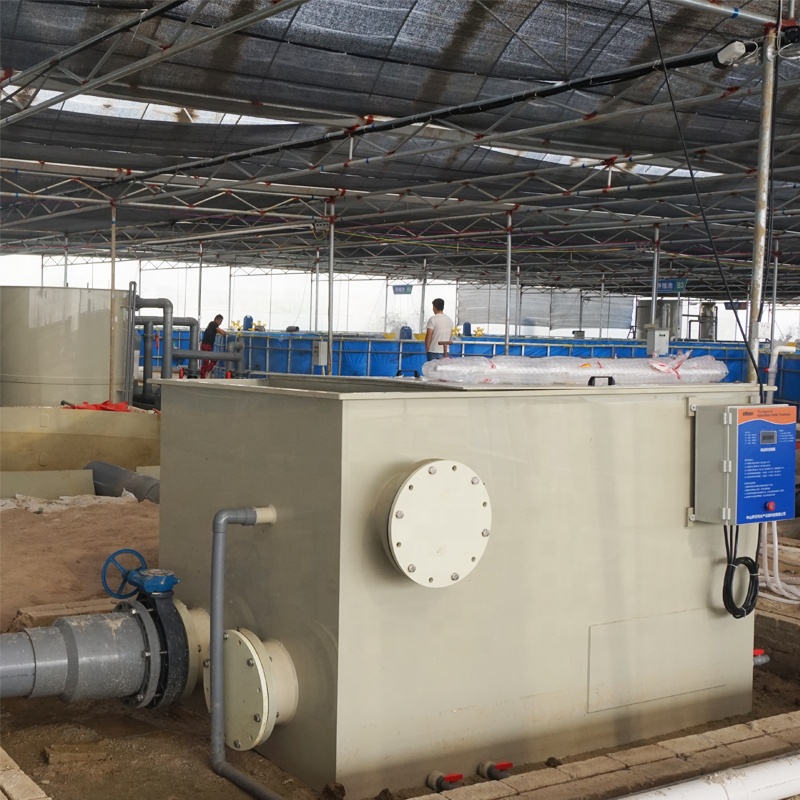

* Main facilities: rotary drum filter, ozone generator, UV sterilizer
* Capacity: 50 cubic meters per hour,
* Volume of the storage tank: 56 cubic meters

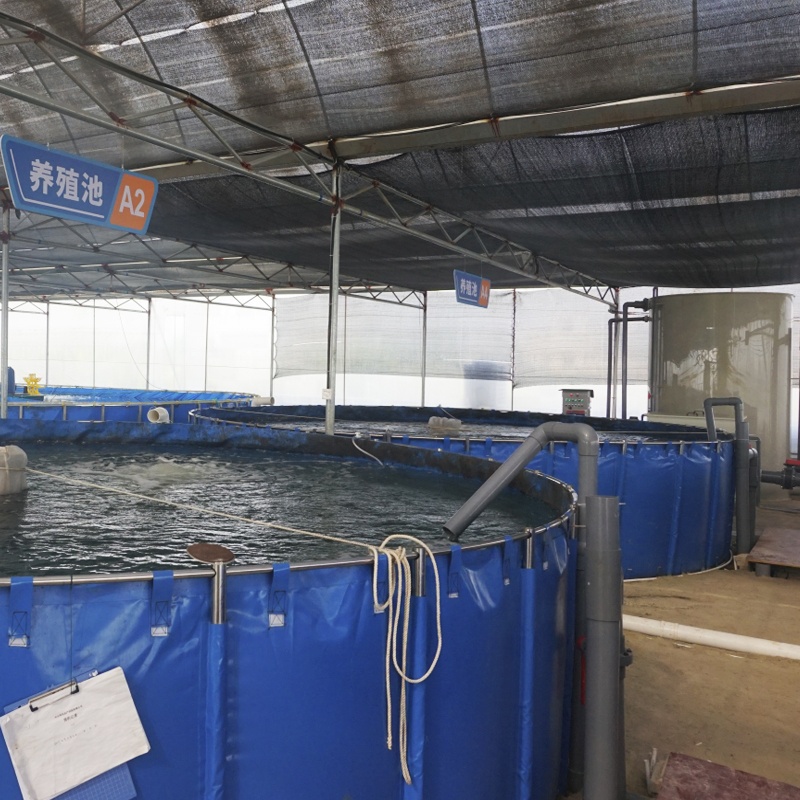

Shrimp nursery system (1 set)

* Four shrimp ponds with a diameter of 6 meters.
* PVC folding tanks is recommended: about 28 cubic meters of water for one tank and 112 cubic meter of water total.
* Capacity: 40 cubic meters per hour

Shrimp Grow-out system (2 sets)

* 8 runway shrimp tanks together and 213 cubic meters of water for one tank,
* 2 separated water treatment systems and one system services 4 runway tanks
* Stocking density: 8-10 kg / m3
* System processing capacity: 240 cubic meters per hour
We will customize the right solution for you based on the species and production needs of your breeding.
RAS Flow Chart
Process
Equipment necessary
Biolfiltration
denitrifying biofilter,MBBR process
Solids removal
drum filter, sand filter, protein skimmer
Reoxgenating
oxygen cone or low pressure oxygenating device
PH control
degassing device
Temperature control
submerged heaters, heat pumps, chillers or heat exchangers
Biosecurity
UV sterilizer ,ozone generator

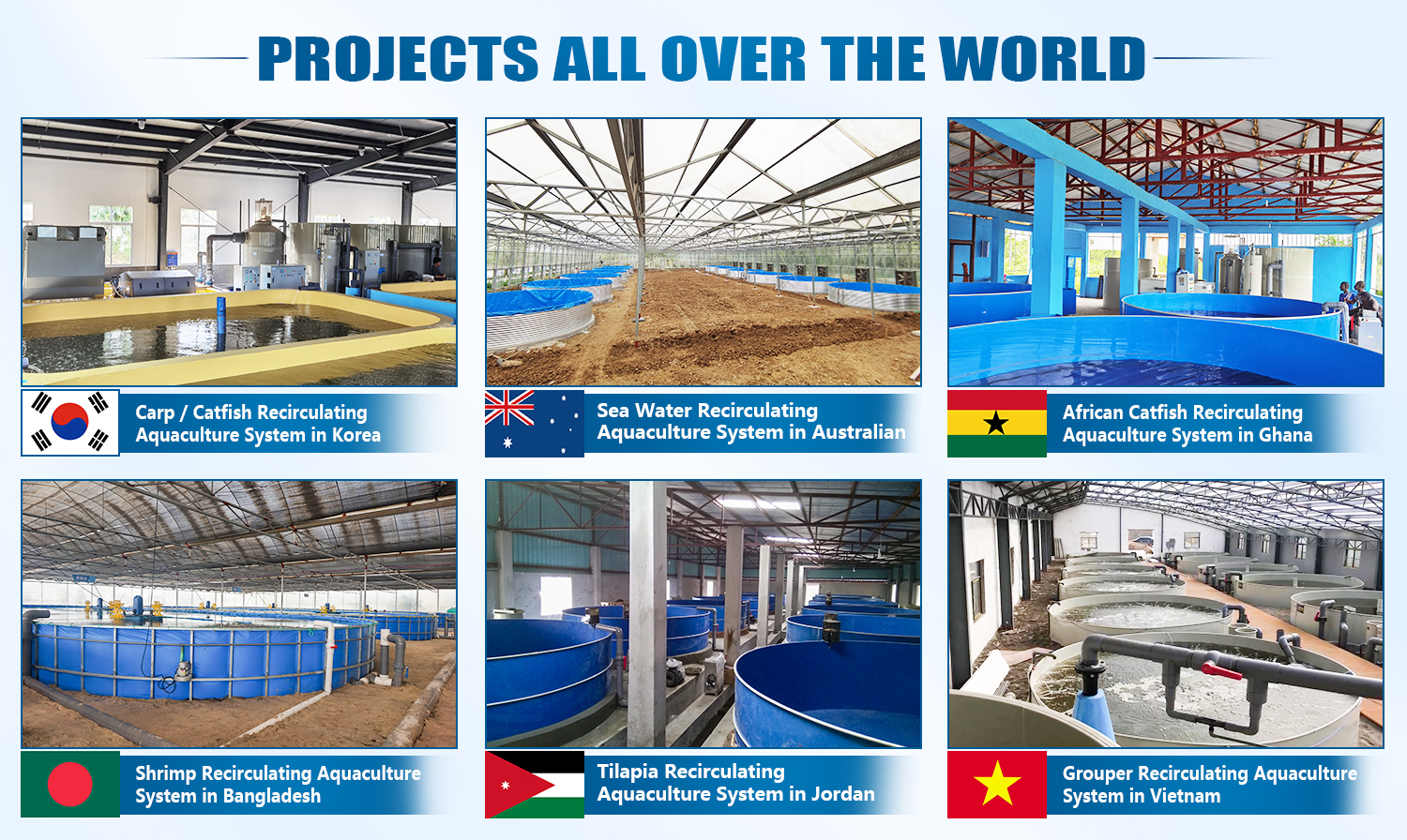

Our Projects
eWater relentlessly pursuing innovative RAS solutions for lower energy consumption and higher productivity.
We’ve successfully delivered more than 400 RAS globally by September 2022.

On-site Project Installation & Qualification Support

We send over engineers to customers’ project location to support the installation & qualifications on-site. We design RAS project detailed prints for overseas customers to get the basic building ready and work out practicable plan including the timeline and labors needs prior to the installation.
Application
Any species of fish and shrimp can be cultured, the following are common species.
Company Profile
Company Profile
At eWater, we provide total Recirculating Aquaculture System solutions and high-quality equipment to support your RAS project needs. Our engineering team works with you to develop a best-balanced proposal for you upon your certain conditions and project objectives. We can also support your designed RAS projects with high-performance & durable equipment.
Certificates and Patents
Obtained more than 26 patents, 2 hi-tech certificates and 3 CE and ISO 9001 certificate
FAQ



Q: Can you make the design for RAS?

A: Sure, we have a professional AQUA team , has been in RAS fishery morn then 9 years. And been develop succeed of salmon, redtrout system and tilapia in Europe and north American. Has been corporate with GenoMar and AquaGen for the breeding and nursery system build up.

Q: What is your product warranty?

A: The warranty is 24 months while the lifetime is 10-15 years under good maintenance. It is durable and anti-corrosion.

Q: What is the payment term?

A: Our payment is T/T, 50% deposit, 50% balance payment before shipment.

Q: How to assemble the equipment once we received it?

A: The CAD install instruction, assembly procedure and project case will be provided, Of course our skilled installation engineers would go to your country and install the equipment if needed.
